Front Brake Hoses - a question of length

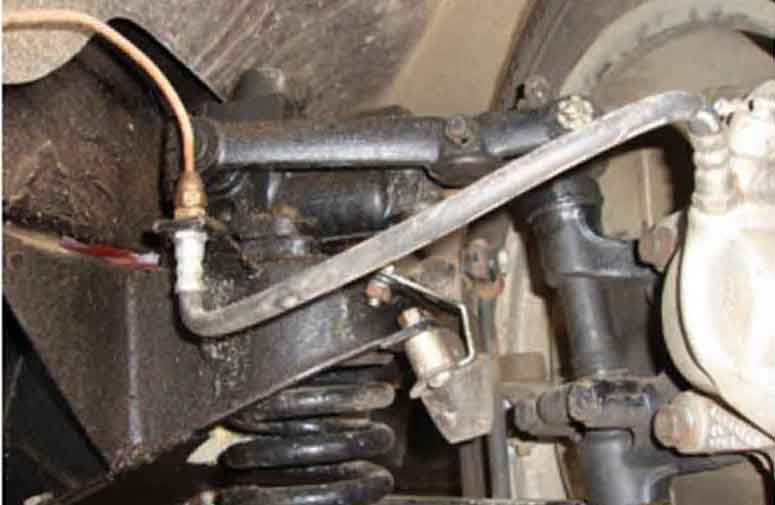

The hose pictured in this V8 Register document - pretty tight:

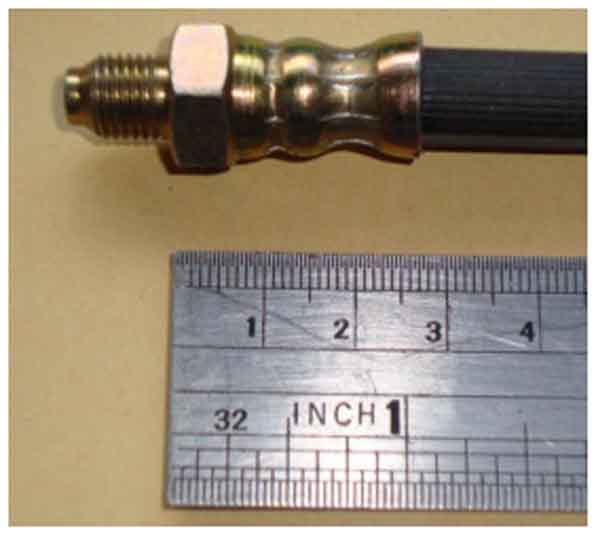

Measuring the length of the metal ends - minus threads:

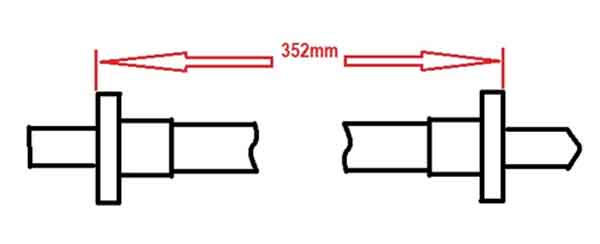

Measuring length from hex face to hex face (Dave O'Neil):

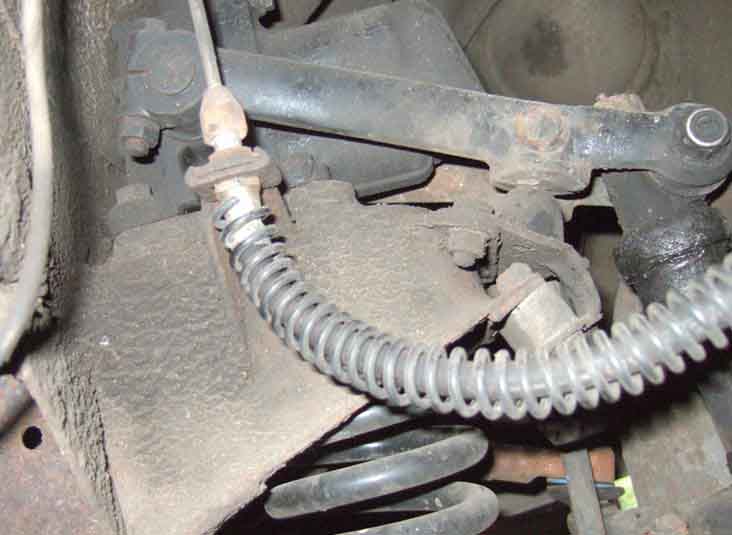

Bee's, with 321mm as far as I can judge from hex face to hex face, and metal ends 22mm at the bracket and 25mm at the caliper:

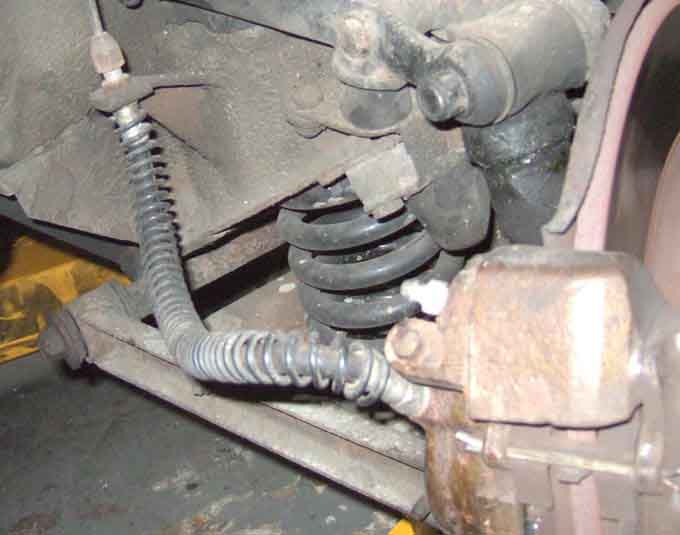

Alignment of bracket to damper:

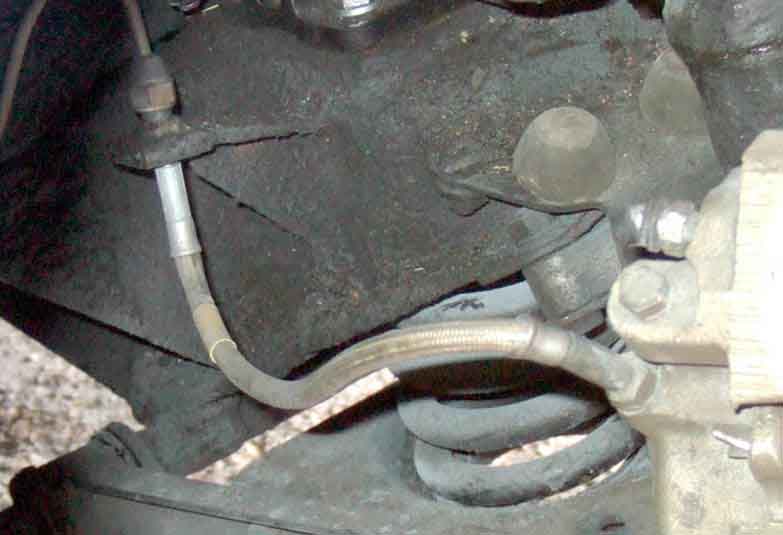

Vee's, with 330mm from hex face to hex face, but with 33mm metal ends:
