Relays and Fuses for Uprated Headlamps

Hover over a wire to confirm the colour
One fuse per filament:

Note: The headlamp flasher, when provided, also powers the blue/white wire, either at bullets nearby the floor-mounted dip-switch, or internally to the switch on column-mounted dip-switches.

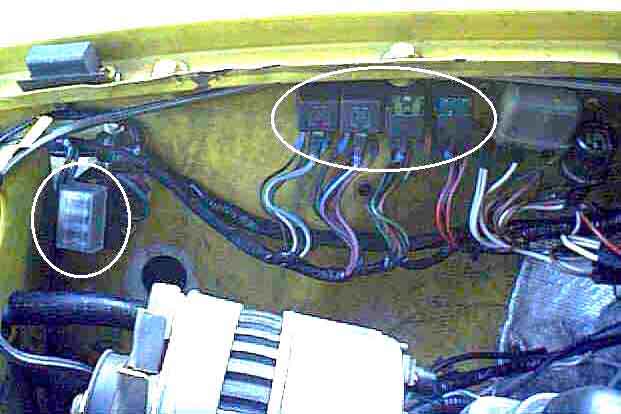

Filament fuses circled on the left, relays on the right. The two fused relays on the right of the group of four are for other circuits.

One fuse per filament:

One fuse per beam on the output of each relay:
